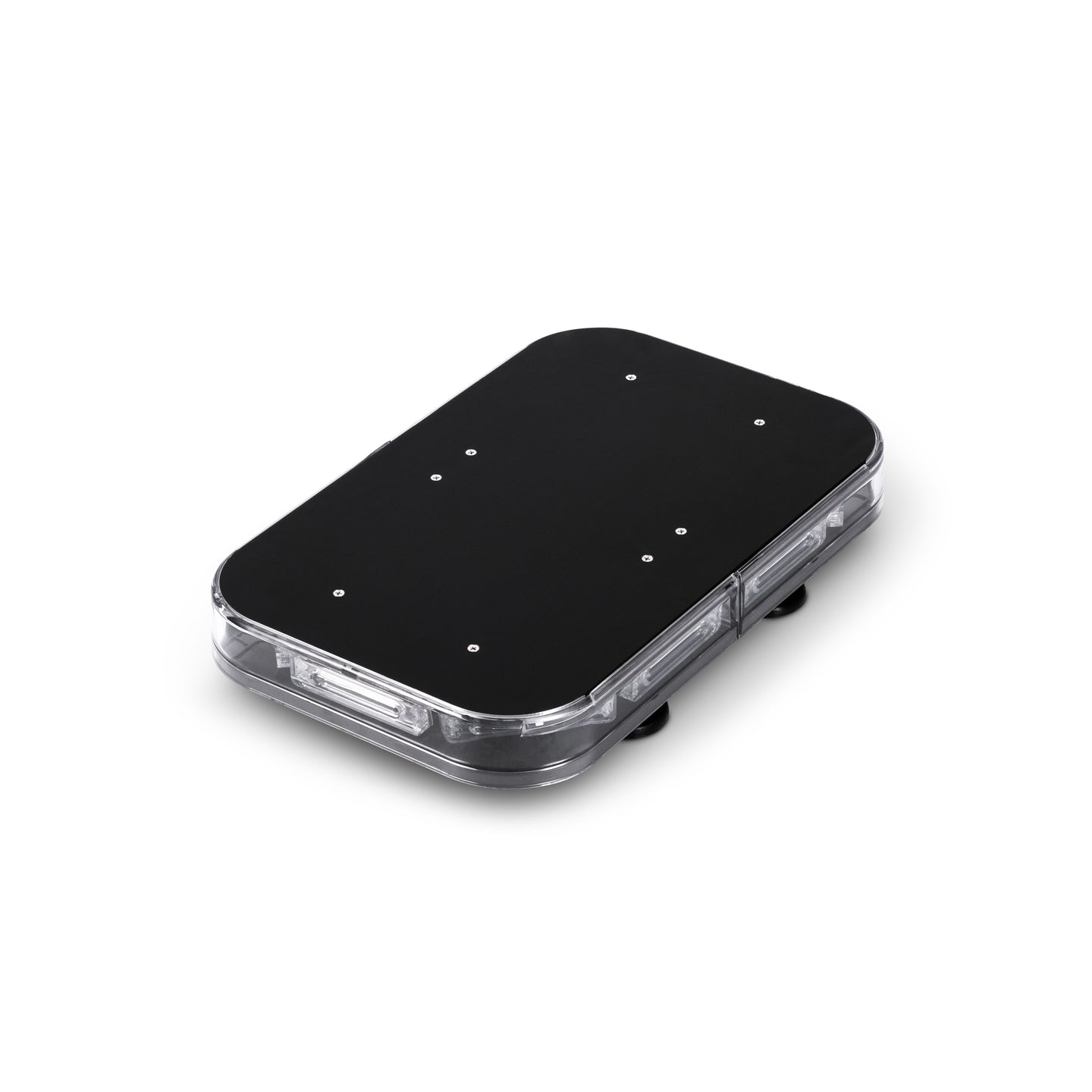

Stealth 18" Linear LED MINI LIGHTBAR

Stealth 18" Linear LED MINI LIGHTBAR

Regular price
Sale price
Unit price
Shipping calculated at checkout.

The Stealth 18" Linear is the smallest of the mini light bars we offer with the same, high performing LEDS as all our other full-size bars. The Stealth design simplifies the overly complicated light bar market and features super bright LEDs Available in TIR LED as well, Clear-coated polycarbonate anti-cracking, anti-yellowing lens moisture-proof with high-grade aluminum chassis

TIR vs Linear

TIR light pattern stands for “Total Internal Reflector”. The best way to describe the light pattern would be to compare it to a flashlight. The spread is round and narrow with a 50-degree spread of light. The strong suit for the TIR is that the light is focused and directed giving a very bright light beam. The downside is that it covers a very narrow area. So it's brighter but narrower whereas the Linear is wider but not as bright.


Linear Light pattern is best described as producing a wide angle of light generally producing 180 degrees of light. This light pattern is highly effective for covering a wider angle however since the light head is being spread over a wider angle it appears much less bright than a TIR.

  • 31 available flash patterns
  • Non-volatile memory recalls the last flash pattern
  • Clear-coated polycarbonate lens: anti-cracking & anti-yellowing
  • Waterproof 3M triple-bubble seal for outdoor protection
Max Draw 12.4 Amps
Cable length 10 feet
LED count 60 LEDs
Input Voltage 10-18 Volts DC
Dimensions 3.1"H x 18" L x 11.4" W

  • New Generation Technology – Linear  Optics
  • 31 available flash patterns
  • Upgradable multicolor traffic advisor functionality
  • Non-volatile memory recalls the last flash pattern
  • The lifespan of up to 100,000 hours
  • Magnetic feet included.
  • 10” of cable from the light bar to the connector
  • Aluminum top housing provides structural reinforcement also 360 degrees coverage for collision protection


  • Magnetic feet mounted

  • Cigarette plug with switches

Color Options
