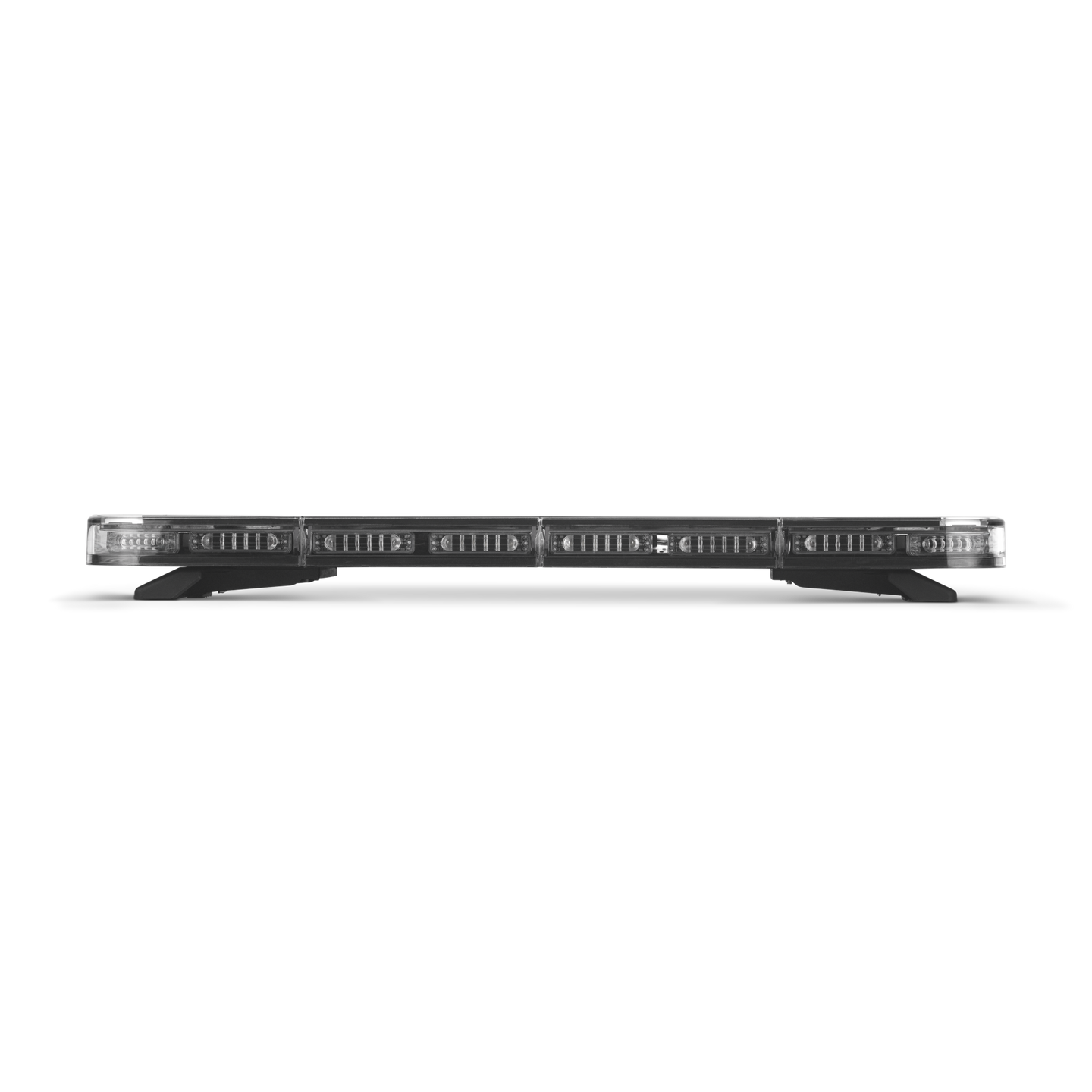

The Stealth 36" Linear  is the smallest of the full-size light bar range with the same Bright, highest-performing LEDs we offer in all our other Stealth light bars.. The Stealth design simplifies the overly complicated light bar market and features super bright LEDs Available in TIR LED or Linear LED Clear-coated polycarbonate anti-cracking, anti-yellowing lens moisture-proof with high-grade aluminum chassis.


TIR vs Linear

TIR light pattern stands for “Total Internal Reflector”. The best way to describe the light pattern would be to compare it to a flashlight. The spread is round and narrow with a 50-degree spread of light. The strong suit for the TIR is that the light is focused and directed giving a very bright light beam. The downside is that it covers a very narrow area. So it's brighter but narrower whereas the Linear is wider but not as bright.


Linear Light pattern is best described as producing a wide angle of light generally producing 180 degrees of light. This light pattern is highly effective for covering a wider angle however since the light head is being spread over a wider angle it appears much less bright than a TIR.

  • 31 available flash patterns
  • LED take-down and alley lights
  • Built-in amber arrow stick
  • Upgradable multicolor traffic advisor functionality
  • Arrow stick directions: right, left, center out
  • Non-volatile memory recalls the last flash pattern
  • Clear-coated polycarbonate lens: anti-cracking & anti-yellowing
  • Waterproof 3M triple-bubble seal for outdoor protection
Max Draw 15.5 Amps
Cable length 10 feet
LED count 108 LEDs
Input Voltage 10-18 Volts DC
Dimensions 3.4"H x 36.8" L x 11.4" W

  • New Generation Technology – Linear Optics
  • 31 available flash patterns
  • Upgradable multicolor traffic advisor functionality
  • Non-volatile memory recalls the last flash pattern
  • The lifespan of up to 100,000 hours
  • Includes takedown, rear directional, dim, cruise, alley, work light, flood mode (dual color)
  • Standard feet included. Vehicle-specific hook kits, headache, permanent or adjustable foot-mounts sold separately
  • 10” of cable from the light bar to the connector
  • Aluminum top housing provides structural reinforcement also 360 degrees coverage for collision protection
  • TD/Alley Option: Standard Clear = Clear in warning mode and when activated


  • Standard feet included. Vehicle-specific hook kits, headache-free, permanent or adjustable foot-mounts
  • Hand-Held Remote

Color Options

  • We have a list of colors available to mix and match to your preference
  • We can fully customize any bar to any color combination you wish please just chat with us or email us to get the custom set up and pricing
